Aluminum Extrusion Stretcher

This product has been discontinued and removed from our shelves.

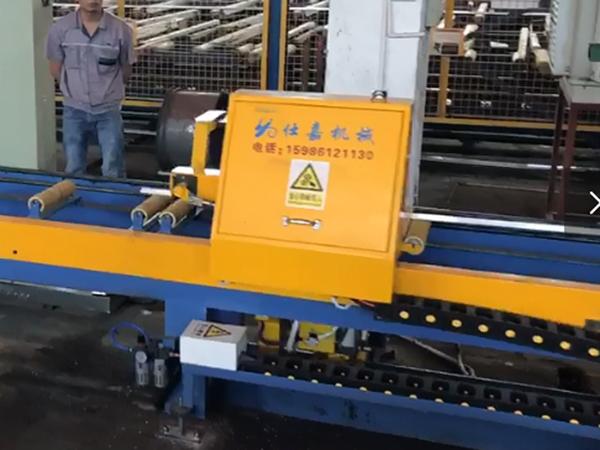

Aluminum profiles that have just been extruded from the aluminum press are relatively soft, which require a stretcher to pull them straight and drag them to the cooling bed. Aluminum extrusion stretcher here at JIANENG JINGJIN is able to stretch the aluminum materials. It consists of two stretcher heads and a saw head, in which the two stretcher head works simultaneously, while one stretcher head is stretching the aluminum profiles, the other will return back quickly, they work cooperatively to achieve high efficiency. The aluminum extrusion stretcher here at our company is prefect for 600T-3000T aluminum extrusion press.

Specifications

Pulling speed: 30-70m/min
Return speed: 200m/min
Interruption mode: Automatic

Features

• The saw locates in the initial material countertops, which lowers weight of the stretcher head and reduces inertia caused by return of the stretcher head;

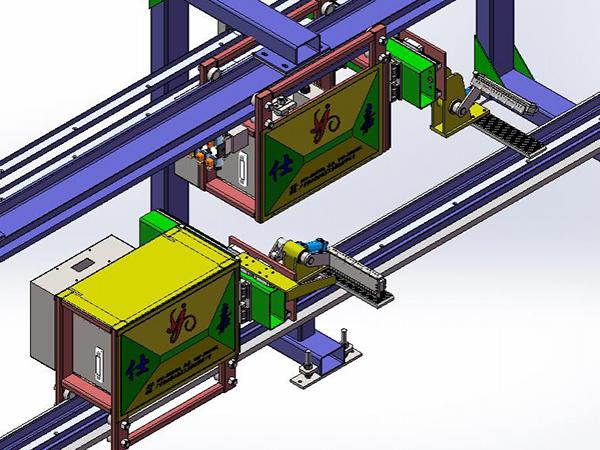

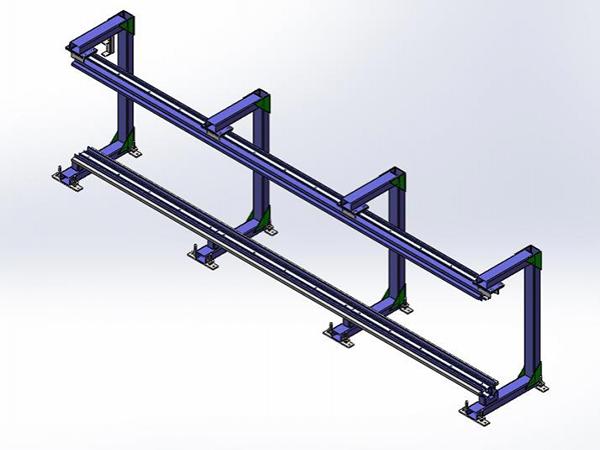

• Each stretcher head of the stretcher operates on its own track, without connects between each other, which avoid deformation of aluminum profiles resulted from free running of traditional double stretcher and disturbing problems caused by shared track vibration.

Construction

The diameter of the aluminum billets might differ due to the aluminum extrusion press used by different customers varies in extrusion capacity. As the varied thickness of the aluminum billets might lead to aluminum profiles with diversified thickness, we are able to customize various aluminum extrusion stretchers to fit for the aluminum extrusion presses with different extrusion capacity.

600-1450T aluminum extrusion press
The aluminum extrusion stretcher used for 600-1450T aluminum extrusion press here at our company is able to stretch 90-120mm-diameter aluminum billets.

1650-2000T aluminum extrusion press
The aluminum extrusion stretcher used for 1650-2000T aluminum extrusion press is available in stretching aluminum billets with the diameter of 90-120mm.

2500-3600T aluminum extrusion press
The aluminum extrusion stretcher used for 2500-3600T aluminum extrusion press is available in stretching aluminum billets with the diameter varying from 127-254mm.
