Hot Cutting Circular Blade Saw for Aluminum Log Cutting (Billet Saw, Aluminum Cutting, Non-Ferrous Metal Cutting)

This product has been discontinued and removed from our shelves.

For some aluminum extrusion profiles manufacturers with limited space, it's better to use single billet preheating furnace to save space occupied by processing equipment and materials and the cutting process of the billets is often conducted after the preheating of billets, in which, hot cutting circular blade saw is used for cutting the preheated billets, under this condition, no aluminum sawing solutions are required for aluminum cutting before a billet preheating process, which is space and cost saving. Hot saw machine provides round aluminum ingots with smooth end-surface to the aluminum extrusion press where the preheated long aluminum billets cut into short ones and then the shorts ones conveyed to the extrusion press for aluminum extrusion, which lowers the possibility of contamination on the aluminum billets before their extrusion process. We must note that the hot cutting saw must be used with the preheat furnace together and can only be used after the preheat process.

Specifications

Available diameter for cutting aluminum billets: 90-510mm
Cutting time: no more than 50s for each billet
Cooling mode: Less cutting fluid for lubrication
Cut-to-length mode: Automatic

Features

• Our hot cutting saw is not suitable for hydraulic press or hydraulic pump, so it is free from hydraulic oil contamination under any working conditions;

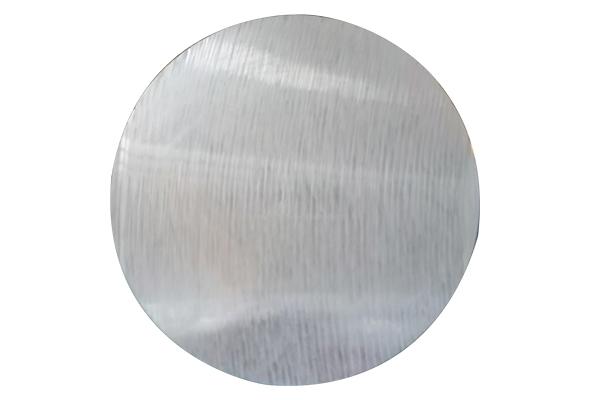

• The cut surface features flat and smooth surface, available in improved grinding efficiency of aluminum billets;
• Aluminum chips recovery equipment here at our company adopts aluminum chips collector, which is available in automatic collection of aluminum chips in the cutting process, avoiding waste of the aluminum materials;
• The hot cutting saw is designed with cutting-to-length system, which can achieve automatic aluminum billets length for cutting, ensuring same sizes of the cut aluminum billets.

Construction

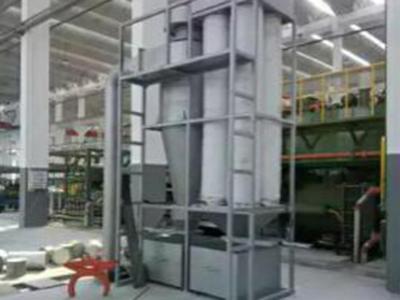

Aluminum chip collector
Aluminum chip collector is available in automatic collection and recovery of aluminum chips, avoiding waste of aluminum materials.

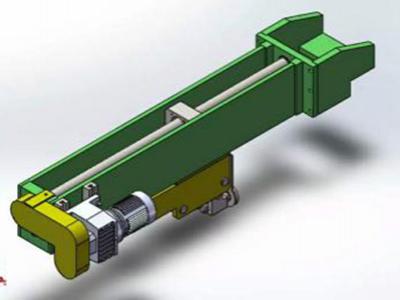

Cut-to-length system
The cut-to-length system is manufactured by us independently, ensuring same size of the cut aluminum billets.

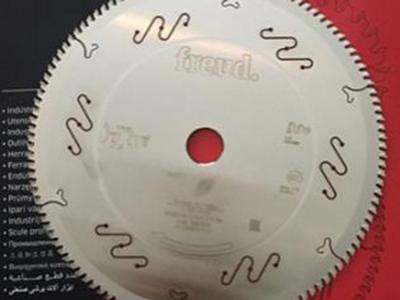

Saw blade
We adopt imported Italian saw blades to ensure high quality of our cutting saws.

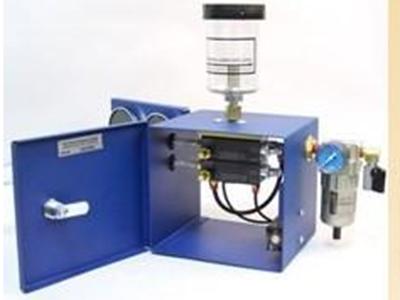

Micro lubrication system
It is used for lubricating and cooling the saw blades.

As the extrusion press used by different customers might differ in extrusion capacity, diameter of the aluminum billets may also vary. For the aluminum billets with different thickness requires different saw blades in cutting and if used inappropriately, the saw blades will be consumed quickly. We are able to customize various hot cutting saws for the aluminum extrusion press with different production capacity.

600-1450T Extrusion Press
Aluminum billets saw used for 600-1450T extrusion press is available for cutting aluminum billets with the diameters of 90-152mm.

1650-2000T Extrusion Press
Aluminum billets saw used for 1650-2000T extrusion press can cut aluminum billets with the diameter ranging from 178-203mm.

2500-3600T Extrusion Press
Aluminum billets saw used for 2500-3600T extrusion press is able to achieve saw cutting of aluminum billets with the diameter ranging from 253-320mm.

4000-6000T Extrusion Press
4Aluminum billets saw used for 4000-6000T extrusion press here at our company is available for saw cutting of aluminum billets with the diameter of 380-510mm.
