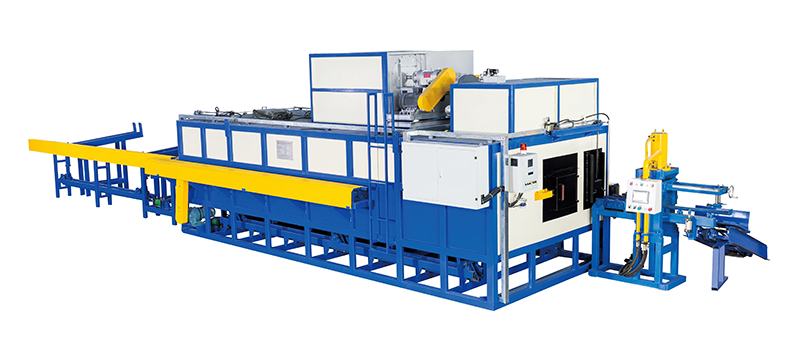

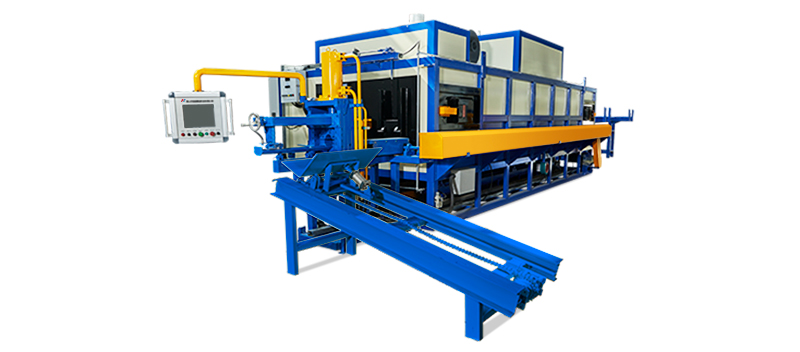

Aluminum Billet Pre-heat Furnace for Extrusion - Multi Billet

Description

We manufacture high-performance pre-heat furnaces for the extrusion processes of 600-4000t aluminum extrusion plants. The pre-heat furnace heats aluminum billets with diameters ranging from 80mm to 330mm and with a length range of 6000mm to 8000mm. The shortest possible sheared aluminum billet is 200mm and the length is adjustable according to the aluminum extrusion machine.

• The aluminum billet heating furnace is equipped with 6 burner nozzles to optimize its heating efficiency, shaving off 30 minutes of heating time compared to similar equipment.
• The burners can be maintained without causing downtime.

Technical Specifications

Aluminum extrusion press: 600T-4000T
Billet diameter: Φ80-Φ380mm
Billet length: 6000mm-8000mm
Heating fuel: light diesel oil, liquefied petroleum gas, natural gas, producer gas, coal gas
Cut length of billet: Min.200mm, length is adjustable to be compatible with extrusion press.
Cutting precision: ±2mm
Heating time: 2-4h

Construction

Automatic Aluminum Billet Shearing System

Aluminum Billet Transfer Conveyor System

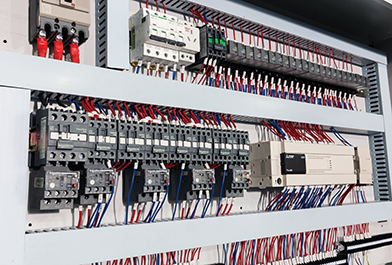

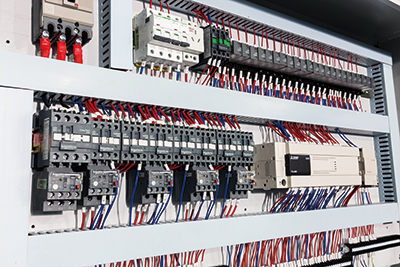

Electrical Control System

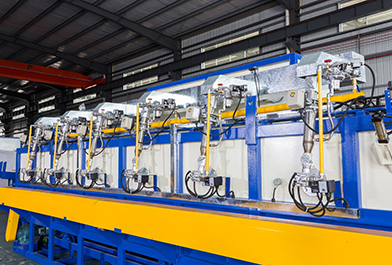

Energy-Saving Combustion Burner

Hydraulic Power Unit (HPU)

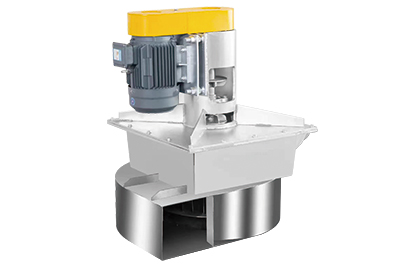

Energy-Saving Exhaust Fan
